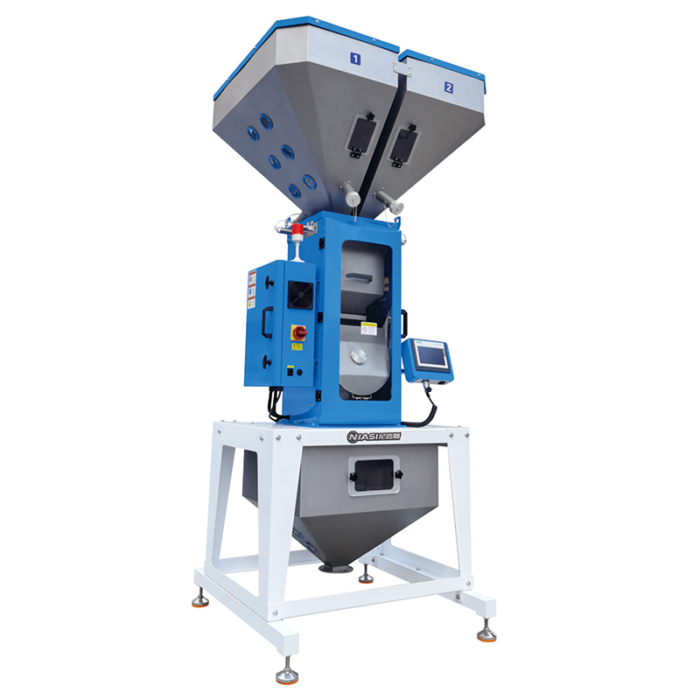

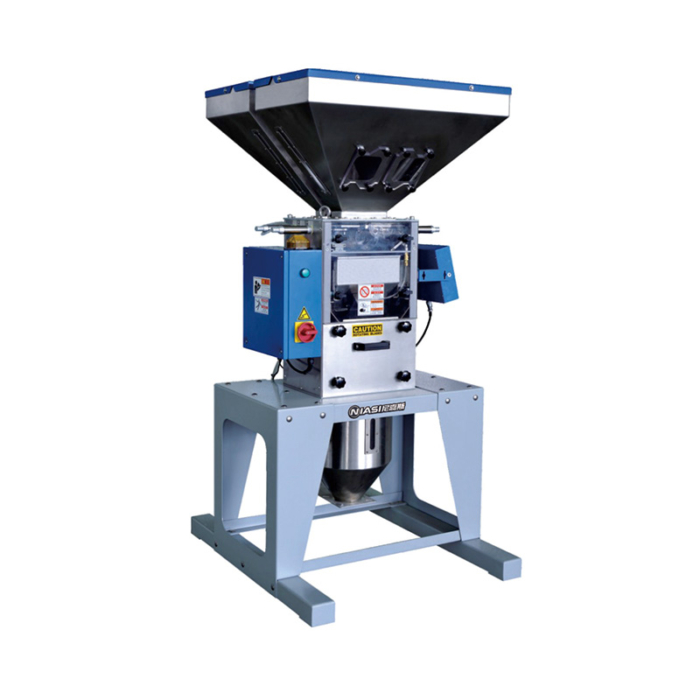

Gravimetric blender

It is mainly used to deal with quantitative weighing and mixing from 2 to 6 kinds of raw materials, including new materials, secondary materials, color masterbatches and a variety of additives for weighing and mixing evenly. Metering capacity from 5kgs/hr to 100kgs/hr. This series of products uses a high-precision weight sensor so that the batch mixing error (depending on the set ratio) can be controlled under 0.5%. The models are complete and can meet the mixing requirements of various precision levels.

Characteristic

The ratio or percentage between raw materials can be set, and the operation is simple and convenient;

Accurate and stable continuous speed operation;

While mixing raw materials, weigh and measure the next batch of raw materials;

Automatic adjustment compensation function; During the batching process, the controller can automatically correct the deviation from the preset value;

Can be installed on or next to the machine;

Can control more than one weighing measuring machine (standard type) at the same time;

Up to six raw materials can be processed simultaneously;

Can cooperate with the suction machine automatic feeding;

Weight/volume production mode increases batching capacity;

All parts in contact with raw materials are made of non-steel materials to prevent raw materials from being contaminated; Modular detachable structure design, that is, save space and clean easily;

Weighing accuracy ±0.3%;

Hierarchical security password control and alarm recording function;

Equipped with sound and light alarms, easy to remind maintenance personnel, quickly arrive at the machine site troubleshooting.

Product parameters:

Model		Component quantity	Number of metering valves	Maximum yield	Maximum bulk handling capacity	Compressed air	Stirring motor power	Storage hopper capacity	Weighing drum capacity	Mixing tank capacity	Maximum batch
GB-1	4	4	4	60	1	6	0.09	12	2	8	60
	3	3	3	70	1	6	0.09	12	2	8	70
	2	2	2	150	1	6	0.09	12	2	8	150
GB-2	6	6	4+2	120	2	6	0.09	40	8	18	60
	5	5	4+1	140	2	6	0.09	40	8	18	70
	4	4	4	180	2	6	0.09	40	8	18	90
	3	3	3	200	2	6	0.09	40	8	18	100
	2	2	2	400	2	6	0.09	40	8	18	200
GB-5	6	6	4+2	300	5	6	0.2	48	12	25	60
	5	5	4+1	350	5	6	0.2	48	12	25	70
	4	4	4	450	5	6	0.2	48	12	25	90
	3	3	3	500	5	6	0.2	48	12	25	100
	2	2	2	1000	5	6	0.2	48	12	25	200
GB-10	6	6	*	600	10	6	0.37	100	32	60	60
	5	5	*	700	11	6	0.37	100	32	60	70
	4	4	*	900	12	6	0.37	100	32	60	90
	3	3	*	1000	13	6	0.37	100	32	60	100
	2	2	*	2000	14	6	0.37	100	32	60	200
GB-25	6	6	*	1500	25	6	0.75	150	65	120	60
	5	5	*	1750	26	6	0.75	150	65	120	70
	4	4	*	2250	27	6	0.75	150	65	120	90
	3	3	*	2500	28	6	0.75	150	65	120	100
	2	2	*	4500	29	6	0.75	150	65	120	180
