Water Cooled Chillers

Niasi’s Water Cooled Chillers utilizes a tube-type condenser, ensuring fast heat conduction and excellent heat dissipation. Water Cooled Chillers can provide ice water ranging from 5 to 35°C, with the low-temperature type capable of reaching as low as 3°C (temperature difference not exceeding ±1°C). The compressor power ranges from 3HP to 50HP, with a cooling capacity of up to 7800 to 128500 Kcal/hr.

Key Features:

Equipped with a fully computerized temperature controller, the Water Cooled Chillers offer simple operation and precise control of water temperature within ±3°C to ±5°
The unique design of the condenser and radiator enhances heat exchange efficiency.
The Water Cooled Chillers are equipped with overload protection, high and low-pressure control, and electronic time delay safety devices. It promptly alerts and displays the cause of any malfunction.
Water Cooled Chillers come with a built-in 304 stainless steel insulated water tank, providing durability and easy cleaning.
The Water Cooled Chillers is equipped with phase reversal protection, under-voltage protection, and anti-freezing protection features.

Product parameters:

Model			NC-5WC	NC-6WC	NC-7WC	NC-8WC	NC-9WC	NC-12WC	NC-14WC	NC-16WC	NC-20WC(D)	NC-25WC(D)	NC-30WC(D)	NC-40WC(D)	NC-50WC(D)
Rated cooling capacity	50HZ	KW	12.4	16.7	19.4	22.7	24.3	32.4	37.8	43.4	64.8	78.3	86.8	129.6	156.6
Rated cooling capacity	50HZ	Kcal/h	10662	14359	16681	19518	20894	27859	32502	37317	55718	67326	74635	111436	134652
Gross power		kw	12.775	17.075	20.15	23.45	25.05	33.15	38.55	44.9	66.3	80.55	89.05	133.35	162.225
Compression power		kw	2.96	4.56	5.3	5.49	6.35	8.82	9.67	10.84	17.64	18.97	21.68	35.52	39.3
Refrigerant		kw	R22/407C/134A						R22/407C/134A
Condenser	Style		Bushing type		Shell and tube type		Bushing type		Bushing type		Shell and tube type
	Water discharge	m³/h	2.65	3.66	4.25	4.86	5.28	7.1	8.18	9.34	14.2	16.75	18.69	27.92	33.74
	Nozzle diameter	DN	32	32	40	40	40	50	50	50	65	65	65	80	80
Evaporator	Style		Dry tank type/dry shell and tube type						Dry tank type/dry shell and tube type
Evaporator	Tank capacity	L	55	55	75	145	210	210	250	360	510	510	510	600	780
Standard chilled water flow		m³/h	2.14	2.88	3.34	3.91	4.19	5.58	6.51	7.48	11.16	13.49	14.95	22.32	26.97
Standard nozzle diameter		DN	32	32	32	32	40	40	50	50	65	65	65	80	80

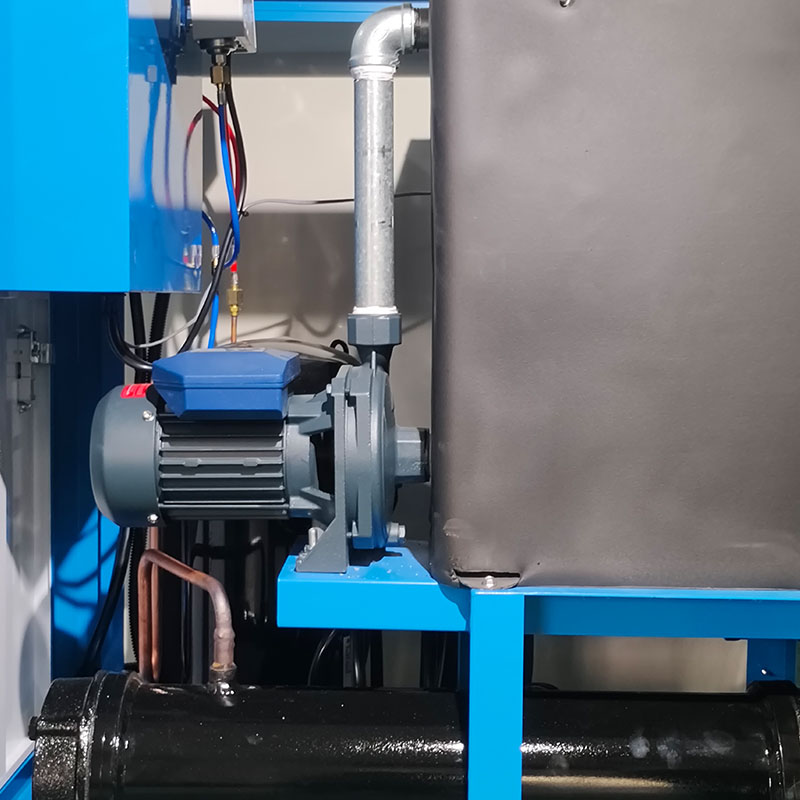

Built-in pump	Horsepower	HP	0.5	0.5	1	1	1	1	1	2	2	3	3	5	7.5
Mechanical weight,	Weight	Kg	130	185	200	315	300	355	600	650	750	1050	1360	1390	1420
