Features:

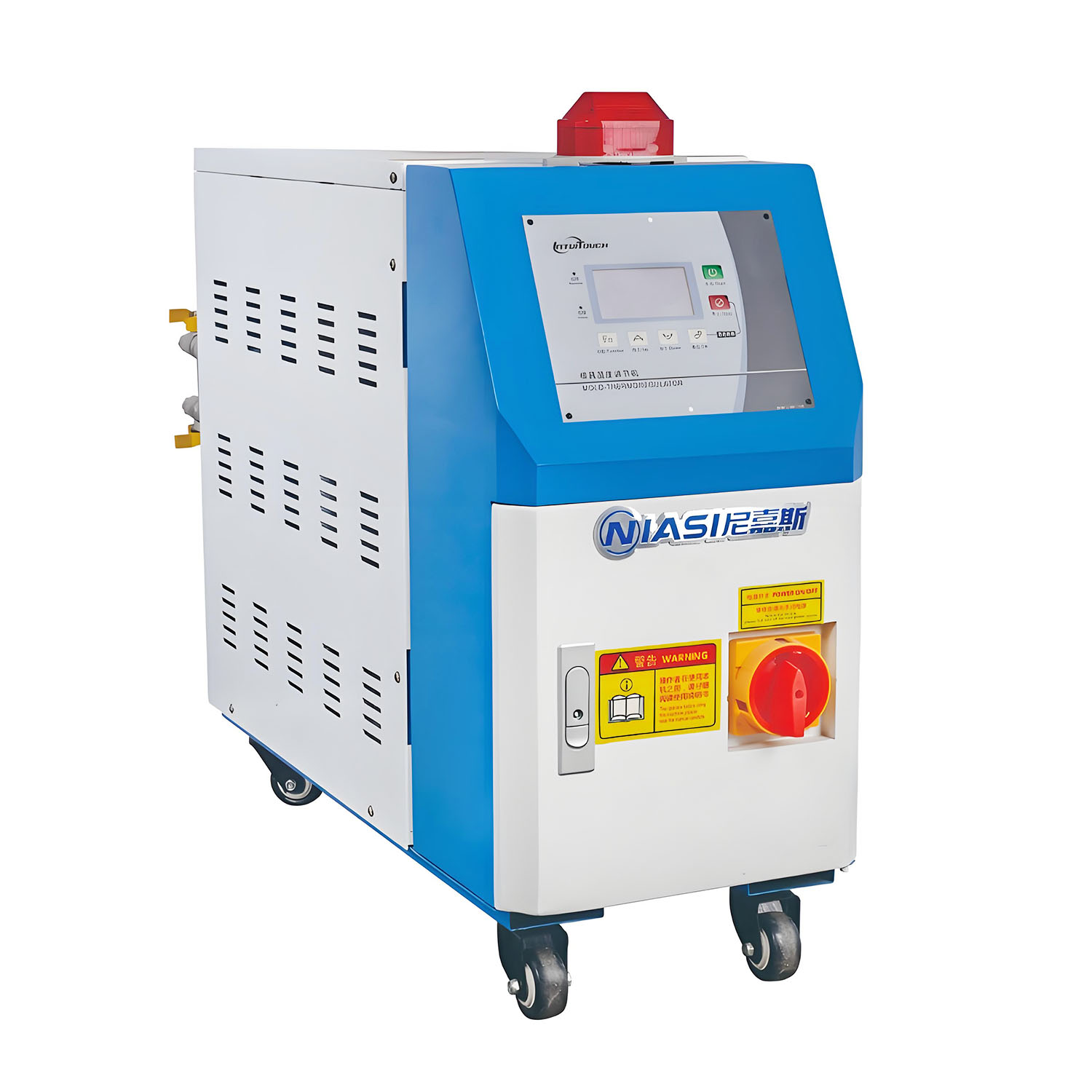

Isolated from the main body, the Water Mold Temperature Controller offers excellent thermal insulation, resulting in a long lifespan for electrical components.
Equipped with a specialized PID controller for mold temperature machines, ensuring more reasonable temperature control and over 35% energy savings.
Comprehensive safety protection and fault indication system, Water Mold Temperature Controller allows for convenient maintenance without the need for specialized personnel.
Incorporates high-quality imported components, ensuring long service life.
Fast temperature rise and fall rates, with precise and stable temperature control reaching up to ±0.1°C.
Unique heating design suitable for various temperature control scenarios, with significant energy-saving effects.
The Water Mold Temperature Controller’s main pipeline is constructed from integrated 304 stainless steel, minimizing pipe damage, ensuring uniform heating, and extending service life.
Automatic air exhaust function upon startup.
Product parameters:
Model | NTW-06 | NTW-09 | NTW-12 | NTW-24 | NTW-06D | NTW-09D | NTW-12D | NTW-24D |
Heater power kw | 6 | 9 | 12 | 24 | 6*2 | 9*2 | 12*2 | 24*2 |
Heat transfer medium | Water | |||||||
Cooling mode | Direct coolong | |||||||
Water pressure requirements (kg/cm²) | 2.5 | |||||||
Cooling water piping | PT1/2 | |||||||
Maximum temperature ℃ | 120℃ | |||||||
Minimum temperature℃ | Normal temperature | |||||||
Temperature control accuracy ℃ | ±0.1℃ | |||||||
Hot water piping |
| |||||||
Cooling capacity Kcal/h | 5400 | 10800 | ||||||
Pump power HP | 0.5 | 1 | 1 | 2 | 0.5 | 1 | 1 | 2 |
Pump flow L/MIN | 35 | 45 | 45 | 70 | 35 | 45 | 45 | 70 |
Pump head M | 26 | |||||||
System power supply | AC 380V/3P/50HZ | |||||||
Appearance size cm | 51*52*23.5 | 62*59*29 | 67*70*29 | 67*79*35 | 51*52*23.5 | 62*59*29 | 67*70*29 | 67*79*35 |
Weight kg | 40 | 50 | 55 | 65 | 40 | 50 | 55 | 65 |
Our Water Mold Temperature Controller is engineered for precision and efficiency. We specifically design this solution for plastic molding to ensure optimal temperature control and achieve significant energy savings. Additionally, with its advanced PID controller and specialized features, it becomes the ideal choice for various industries, including automotive, medical devices, and packaging.
